Squadron 2.0 Sport/S2 Sport fog pocket kit for the Ford Raptor will separate your truck from the rest of the pack, offering a road-legal solution and off-road capabilities in one package. Squadron 2.0 Sport in driving combo and spot configurations, and S2 Sport in wide cornering. This fog pocket kit is engineered specifically for the 2nd gen Ford Raptor trucks, improving visibility on the trail and safety in conditions such as dust, fog, rain or snow.
Controlled by the factory fog switch, the S2 Sport offers 1,581 lumens each and allows for vision within zones 1 and 2. Squadron 2.0 Sports LED lights in spot and driving combo configurations, each producing 3,200 lumens per light at 30W each - a 26 percent increase in performance over the previous generation Squadron - while delivering improved beam control while on the trails. Squadron 2.0 Sport include updated lens patterns optimized for the redesigned optics, a durable 4-pin Deutsch connector, and an all-new Rgb backlight with nine selectable colors to match your vehicle's style.
Enhanced uService features clip-in reflectors for secure, simple lens swaps, paired with a redesigned gasket for superior sealing and long-term weather protection. This comprehensive kit comes with everything you need for a quick install and does not require any additional parts. Backed by our 30 day satisfaction guarantee and limited lifetime warranty* for the ultimate in purchase protection.

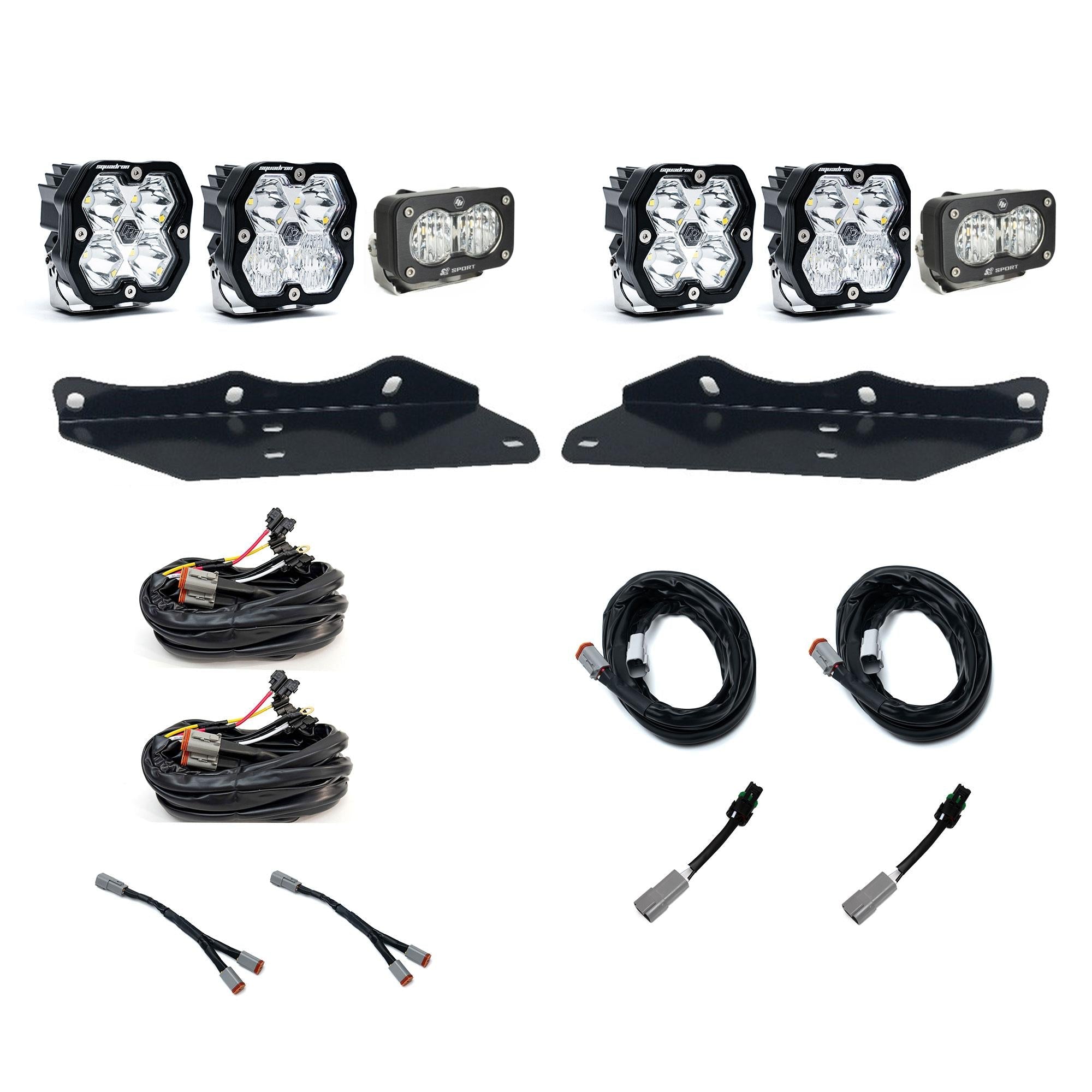

Includes:
- (2x) S2 Sport, Wide Cornering
- (2x) Squadron 2.0 Sport, Driving Combo Clear
- (2x) Squadron 2.0 Sport, Spot Clear
- (2x) Mounting Brackets
- (2x) Upfitter Harness; Dual 4-Pin Deutsch w/HiLow Backlight
- (2x) 4-pin Deutsch 5' Extension
- (2x) Adapter, 4-pin Deutsch to 2-pin WeaPac
- (2x) Splitter Small, Deutsch 4-pin 2-light
- All Necessary Mounting Hardware
S2 Sae Specifications (Per Light):
- Lumens: 1,581
- Watts/Amps: 12.42W/0.9A
Squadron 2.0 Sport Specifications (Per Light):
- Lumens: 3,200
- Watts/Amps: 30W/2.2A
The Baja Designs Advantage:
- Satisfaction Guarantee - 30-Day Money Back Guarantee
- Limited Lifetime Warranty - Complete Purchase Protection
- uService - Replaceable Lenses and Optics
- ClearView - All the Light, Right Where You Need It
- MoistureBlock - Waterproof, Rain Proof, Submersible
- CopperDrive - Safely Driving LEDs at 100 percent
- 5000K Daylight - Less Driver Fatigue, Natural Color
- Specifications:
- Brightness (Lumens): 3,200 lm
- Amperage Rating (A): 30W / 2.2A at 13.8V
- Voltage: Operating White Light Voltage: 10 - 36V; Operating Backlight Voltage: 11-14V
- Description: Backlight: 9-Colors
- Terminal Connector: Deutsch
- Standards & Compliance:
- Standards/Compliance (Water Resistance): IP69K
- Dimensions:
- Depth (in.): 3.32 Inch
- Height (in.): 3.29 Inch
- Length (in.): 2.84 Inch
