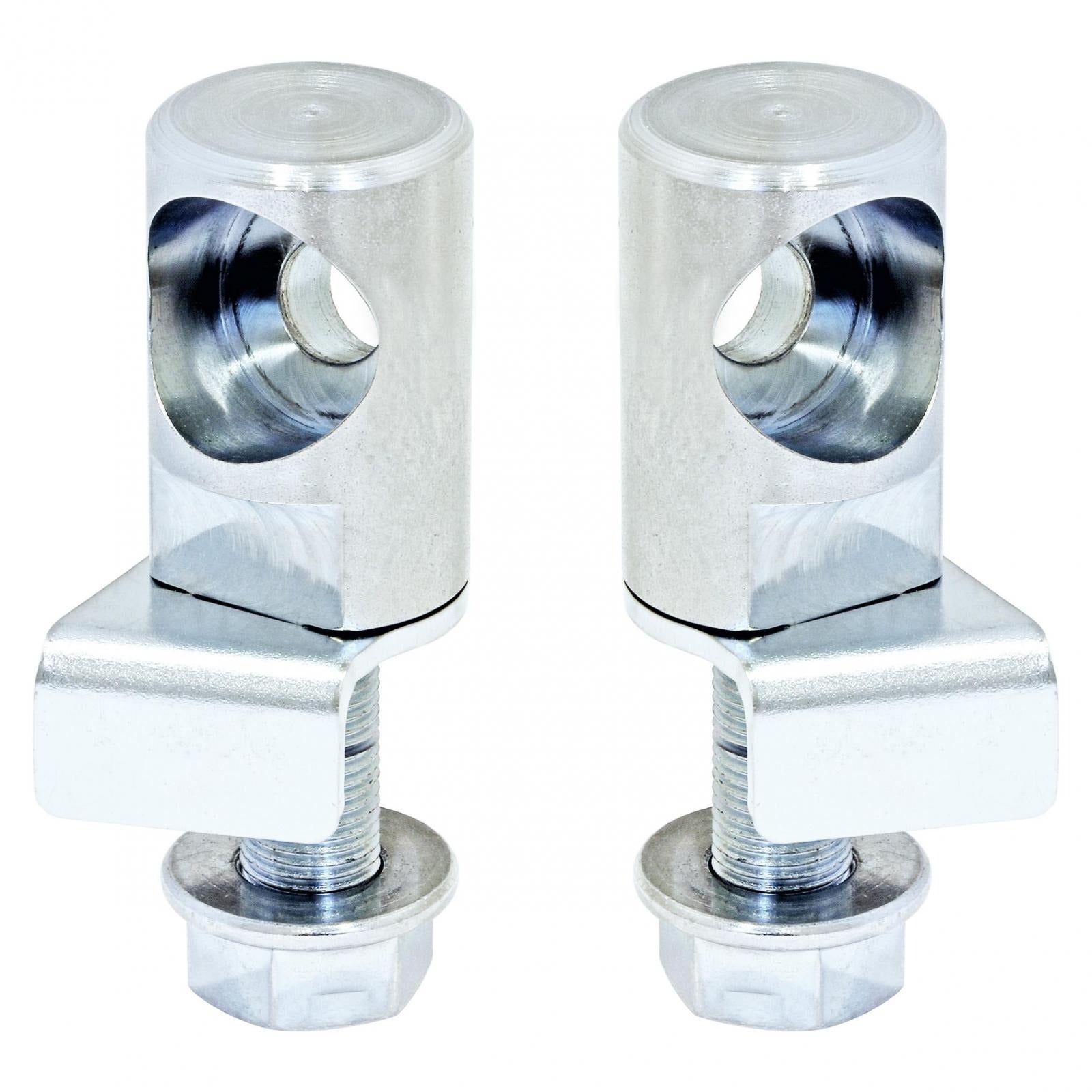

RockJock's Sway Bar End Link Mounting Kit for 2021-up Bronco installs into the hole on the Bronco front lower control arm that the factory sway bar end link is removed from.
This kit includes the billet steel end link mounts, the RH/LH specific rotational locks and the new nuts to tighten them up with!
The bores in the side of the mounts allow our end link rod ends to bolt up with the rod end nut installed into the bore on the side of the mount.
Fabricated from 1 1/4 in. steel bar stock, the mounts include various machined features including bores in the sides of the mounts allow our end link rod ends to bolt up with the rod end nut installed into the bore on the side of the mount, a wrench flat that accepts a 7/8 inch wrench, a double-D shaped machined hub that the RH and LH rotational locks fit onto and 9/16 in.-18 RH threads on the bottom.
Rotational locks are laser cut and formed 1/8 in. steel and the locking flange nuts feature 9/16 in.-18 threads. Finish on all components is clear zinc plating.
Kit Fits:
- (Included in) 2021-Up Bronco Front Antirock Sway Bar Kits (bolt to lower control arms)
- Universal Use
Kit Includes:
- (2) Billet Steel Sway Bar End Link Mounts (gold)
- (1) LH Mount Rotational Lock
- (2) RH Mount Rotational Lock
- (2) 9/16 in.-18 Locking Flanged hex Nuts
Billet End Link Mount Specs:
- 1018 Steel Construction
- 1 1/4 in. Diameter (main body material)
- 3.525 in. Tall
- 9/16 in.-18 RH Threads - 1.50 in. Long
- Wrench Flat accepts a 7/8 in. wrench
Notes:
- Intended for use on the lower control arms of 2021-up Broncos.
