RockJock's Sway Bar End Link Stud is 14 inch long and features 4 1/4 inch of 1/2 inch-20 LH thread and 2 5/8 inch of 1/2 inch-20 RH thread, providing adjustment as-is and extra thread, allowing you to cut it shorter as deemed necessary by your application.
This rod is included in some RockJock Suspension Kits as well as some Antirock Sway Bar Kits, but is able to be purchased individually as a replacement for a bent rod, or universal usages you may find for it.
Additionally, if you have changed the lift amount on your vehicle you may need a different length of end link rod to accommodate your new lift. You can simply buy new link rods to accommodate your needs and install them without having to replace all of your existing hardware.
Rod Fits:
- (Included in) Jeep JL Wrangler and Unlimited Rear Antirock Sway Bar Kits
- (Included in) Jeep TJ Wrangler and Unlimited (LJ) Rear Antirock Sway Bar Kits
- (Included in) Universal Antirock Sway Bar Kits - All
- Universal Use
Kit Includes:

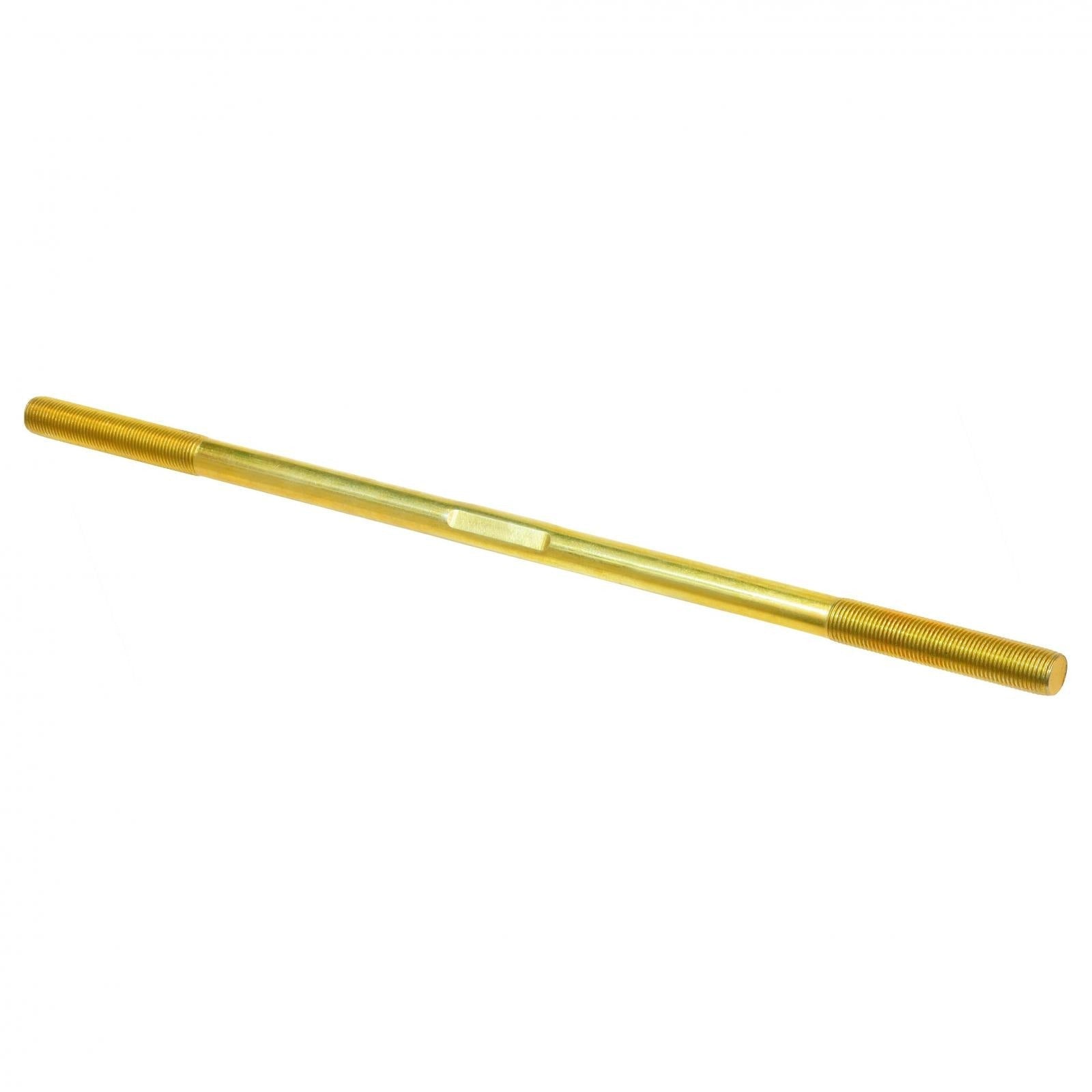

- (1) 14 inch Link Rod (gold)
Rod Specs:
- 14 inch Long
- 1/2 inch Diameter
- 1/2 inch-20 LH Threads - 4 1/4 inch Long
- 1/2 inch-20 RH Threads - 2 5/8 inch Long
- Center Smooth Area - 7 1/8 inch Long
Adjustment Range (w/ Heim Joints Installed):
- Closed - At maximum trimming of this rod (15/16 inch of thread left on each side and the heims and jam nuts screwed on til they meet the smooth area of the rod), C-C is 12 1/4 inch
- Extended - Uncut rods with heims installed safely adjust out to 17 1/4 inch C-C
Notes:
- These is the link rod that we include in our JL rear Antirock kits, TJ and LJ rear Antirock kits as well as all of our Universal Antirock Kits
